Headboard Wall Sconce Placement and Wiring Step by Step
Wall sconces flanking a headboard are one of the highest-leverage bedroom upgrades available, and they are also one of the most commonly misplaced fixtures in residential lighting. Industry data summarized by the American Lighting Association indicates that the most frequent service calls on bedroom sconces involve mounting heights, switch placement, and shade orientation, in that order. None of those failures are caused by lack of skill on installation day. They are caused by decisions made before the drill ever touches drywall.
This guide walks through sconce placement and wiring as a sequence of decisions, starting with mounting height relative to the actual mattress top and ending with switch type, bulb output, and the routing options for both hardwired and plug-in sconces. Each section includes the specific dimensions and watt-equivalents that produce reading-quality light without glare, and the trade-offs between the two main wiring routes for renters and owners. By the end, you should have the numbers, the steps, and the decision logic to install a pair of sconces that read as built-in rather than added later.
Why Sconces Beat Table Lamps For Bedside Reading
The functional case for sconces over table lamps is straightforward: a wall sconce frees the entire bedside surface, throws light from above the eye line of a seated reader, and eliminates the cord that snakes off a nightstand. The aesthetic case is that wall sconces create a layered lighting plan that includes ambient ceiling light, accent surface light, and dedicated task light, which is the standard structure recommended in most professional residential lighting design.
The key spec for reading is illuminance at the page. Lighting research summarized by trade groups suggests that a bedside reading task wants between 200 and 500 lux at the page surface, depending on the reader's age and visual comfort. A typical 800-lumen LED bulb in a sconce 24 to 30 inches above the mattress top delivers roughly 300 lux at a held book, which is comfortable for most adults under 50 and acceptable for older readers when paired with a white inner shade. A table lamp at the same lumen output usually delivers less usable light because the shade is closer to eye level and creates more glare.
There is also a sleep-quality argument. Sconce switches placed within reach of the pillow let a reader extinguish the light without sitting up or reaching across to a nightstand. Studies referenced by major design publications including Better Homes & Gardens note that the friction of getting out of bed to turn off a remote switch is a measurable factor in how late readers stay up, which suggests that bedside-controlled sconces support better sleep hygiene than ceiling-only lighting.
Mounting Height And Distance From The Bed
The single most important spec is mounting height. The standard recommendation places the bottom of the sconce shade between 60 and 66 inches from the finished floor, which puts the light source roughly 24 to 30 inches above a typical mattress top. That range balances two competing constraints: high enough that the light angle clears the head of a seated reader, and low enough that the light cone reaches an open book without hot-spotting the wall behind.
The trick is that mattress top height varies enormously across mattress types. A platform bed with a 12-inch mattress and no box spring sits at roughly 18 inches above the floor. A traditional bed with an 8-inch box spring and a 14-inch mattress sits at 30 inches. A puffy pillow-top setup with a foundation can sit at 36 inches. The right mounting height for each scenario is different, and the formula that works across all of them is mattress-top-plus-30-inches for a sconce intended primarily for reading. Have you actually measured your mattress top with the bedding on it? Most installers default to a fixed 60-inch number and end up with sconces too low for fluffy beds and too high for low platforms.
Horizontal placement is the second variable. Sconces should sit between 6 and 12 inches outside the headboard's outer edge, which keeps the light cone over the bed without crowding the headboard visually. For a queen bed with a 60-inch headboard, that means sconce centers roughly 36 inches off the bed centerline. For a king bed with a 76-inch headboard, sconce centers fall around 44 inches off the bed centerline. These numbers assume sconces with shade diameters of 6 to 9 inches; oversized fixtures need to move out further to avoid visual collision.
Hardwired Versus Plug-In Decisions
The wiring decision splits into two routes with very different installation profiles. Hardwired sconces connect directly to in-wall electrical and switch from a wall switch or an integrated fixture switch. Plug-in sconces include a flexible cord that runs from the fixture to a standard outlet, with a switch typically on the cord or on the fixture body. Both can produce excellent results; the choice depends on whether you own the home, how confident you are with electrical work, and how visible the cord routing will be.
Hardwiring delivers the cleanest aesthetic because there are no visible cords. It requires either an existing junction box at the desired height, which is rare, or running new cable and adding a new box, which usually means cutting drywall, fishing wire from a power source, and adding a switch. Most residential codes, including those summarized by the National Association of Home Builders, require this work to be performed by a licensed electrician or under permit in many jurisdictions. The cost typically runs $300 to $700 per sconce in labor alone, depending on wall access.

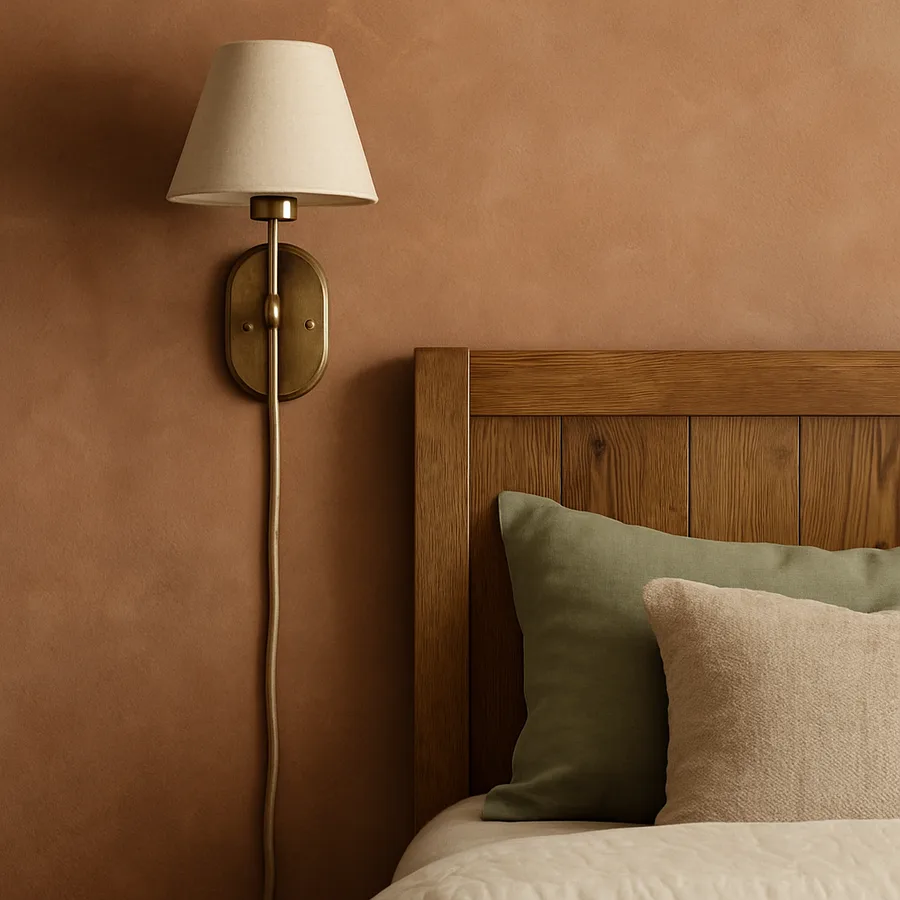

Plug-in sconces eliminate the electrical work entirely. The fixture mounts on the wall with a single small junction-style backplate, and the cord exits the fixture through a small slot or knockout. Cord routing is the only design consideration: a cord routed straight down to a baseboard outlet looks intentional, while a cord routed sideways or diagonally reads as makeshift. Many plug-in sconces ship with cord covers in matching finishes that disappear against painted walls, and renters in particular prefer this route because no permanent electrical work is required.
Step-By-Step Installation For A Plug-In Sconce
The plug-in sconce installation is the more accessible of the two routes, and it is the right starting point for most readers. The full process takes 60 to 90 minutes per sconce after placement decisions are finalized. Tools required: a stud finder, a level, a drill, drywall anchors rated for 10 to 25 pounds depending on fixture weight, a pencil, painter's tape for marking, and the manufacturer's mounting hardware.
Step one is marking the mounting position. Apply a strip of painter's tape vertically on the wall at each sconce location, then use a level to confirm the strip is plumb. Mark the mounting hole position on the tape using the spec from the manufacturer's template. Confirm the height is at mattress-plus-30-inches and the horizontal distance is 6 to 12 inches outside the headboard edge. Step two is testing for a stud at that location. If a stud falls within an inch of the mounting hole, drill a pilot hole and use a wood screw rather than a drywall anchor. If no stud is present, install a drywall anchor rated for at least double the fixture weight.
Step three is mounting the backplate. Most plug-in sconces use a single screw or a two-screw backplate; tighten until the plate is firm against the wall but not crushing the drywall. Step four is attaching the fixture body to the backplate, usually via a hidden screw or a friction-fit collar. Step five is cord routing: feed the cord through the cord cover, route the cover straight down to the nearest outlet, and secure it with the supplied adhesive strips. Step six is bulb installation and switch testing. Confirm the fixture switches on, points the light cone over the bed, and that the cord cover holds at room temperature. Resources from Apartment Therapy include detailed cord-routing photo walkthroughs that are worth reviewing before final installation.
Step-By-Step Installation For A Hardwired Sconce
Hardwired installation requires either an existing junction box or new wiring run from a power source. If your bedroom already has wall-mounted boxes flanking the bed, the process is straightforward and similar to replacing any other fixture. If new wiring is required, the work involves opening drywall, fishing cable from a power source (typically a nearby outlet or switch leg), and installing a new old-work box at each sconce location. Always shut off the breaker serving the relevant circuit before any work, and test with a non-contact voltage tester before touching wires.
The basic wiring sequence at the fixture is: connect ground (green or bare copper) to the fixture ground screw or pigtail, neutral (white) to the neutral lead on the fixture, and hot (black) to the hot lead. Most modern sconces include color-matched leads, but older homes may have cloth-insulated wiring that requires careful identification. If the existing wiring shows insulation cracking, brittleness, or any sign of overheating, stop the install and consult a licensed electrician. Old wiring is the single most common cause of post-install electrical issues, and the cost of new feed cable is small compared to the risk.
The switching decision is the second variable. A simple single-pole wall switch is the cheapest option but requires both partners to reach across the bed for the same switch. A pair of three-way switches, one at each bedside, is the most user-friendly setup but requires more wiring. Many modern sconces include integrated switches on the fixture body, which avoids any wall-switch wiring at all. The choice often comes down to how the bed is approached: does someone enter from one side and reach over, or do both partners want symmetric control? The right answer is rarely the same for every couple.
Bulb Selection And Shade Considerations
Bulb choice is where many sconce installations underdeliver despite good fixtures and good placement. The two specs that matter most are color temperature and lumen output. For a bedroom reading sconce, color temperature should fall between 2700K and 3000K, which produces the warm-white light that reads as comfortable in evening hours. Anything above 3500K starts to feel clinical, and anything below 2500K shifts toward orange and reduces page contrast for reading.
Lumen output should land between 600 and 900 lumens for a single-bulb reading sconce. Lower than 600 lumens forces readers to lean toward the page, and higher than 900 lumens creates glare on glossy paper or screens. Dimmable bulbs are essentially mandatory; the same fixture that reads at 800 lumens for active reading is too bright at 200 lumens for a wind-down conversation, and a dimmer covers both modes from the same hardware.
Shade orientation and material are the third variable. Adjustable arm sconces let the reader aim the shade directly at the page, which dramatically improves usable light over a fixed-angle sconce. White or off-white inner shades reflect more light onto the page than dark inner shades, even when the outer shade material is identical. Linen and paper shades soften the light in a way that metal cones do not, but they reduce overall illuminance by 15 to 25 percent compared to a clear or open-bottom shade. Have you tested your specific bulb-and-shade combination against an open page before declaring the install finished? A 10-minute reading test reveals issues that no spec sheet predicts.
Switch Placement, Smart Options, And Final Adjustments
Switch placement matters more than most homeowners realize. A wall switch on the entry side of the bedroom is convenient when arriving but useless from bed. A switch on the fixture body works for any sconce but requires reaching up and out, which some readers find awkward. Cord-mounted switches on plug-in sconces are the most ergonomic for in-bed use because they sit on the cord at pillow height when properly positioned.
Smart-bulb and smart-switch options have become genuinely viable in the last few years. A pair of smart bulbs in basic plug-in sconces, controlled via a phone app or voice assistant, delivers dimming and scene control without any wall-switch wiring. The trade-off is reliance on a network: when the home internet is down or the app is updating, the bulb may default to its last state, which can be inconvenient. Smart switches, hardwired in place of a conventional switch, deliver more reliable behavior because they intercept power locally, but they require all the wiring complexity of any hardwired install.
Final adjustments after installation should be made over a full evening. Read in bed at the new sconce setting, dim through the full range, and note any glare points or shadow zones. Adjust shade angle if applicable, swap bulb color temperature if the room reads too cool or too warm, and reposition cord covers if any sag developed in the first 24 hours. The goal is a fixture you stop noticing entirely, which is the highest compliment for any task lighting.
Conclusion
Headboard sconces are one of the few upgrades that improve a bedroom on multiple dimensions at once: they free bedside surface area, deliver better reading light than table lamps, and create the kind of layered, intentional lighting that reads as professionally designed. The catch is that all of those benefits depend on placement decisions made before the drill ever runs. Get the mattress-plus-30 height right, get the horizontal distance right, and choose between hardwired and plug-in routes based on your actual constraints rather than aesthetic ideals.
The wiring decision is rarely as binary as it first appears. Plug-in sconces with thoughtful cord routing look nearly indistinguishable from hardwired fixtures in photos, and the time and cost savings are substantial. Hardwired installations win in new construction or during planned renovations where the wall is already open, and they are worth the investment in those scenarios. For most retrofit situations in existing bedrooms, the plug-in route delivers 90 percent of the benefit at 20 percent of the cost and labor.
If you are planning your install, take this checklist into the bedroom before buying anything: measure mattress top height with bedding on, measure headboard width, identify where studs run on each side of the bed, and confirm whether outlets exist at baseboard level on each side. Those four data points determine almost every downstream decision about fixture selection, mounting height, and wiring route. Take ten minutes with a tape measure and a stud finder this evening, write down the four numbers, and you will arrive at the lighting showroom with the right specs in hand. The sconces you install with that preparation will read as integrated, intentional, and permanent regardless of which wiring route you choose.
