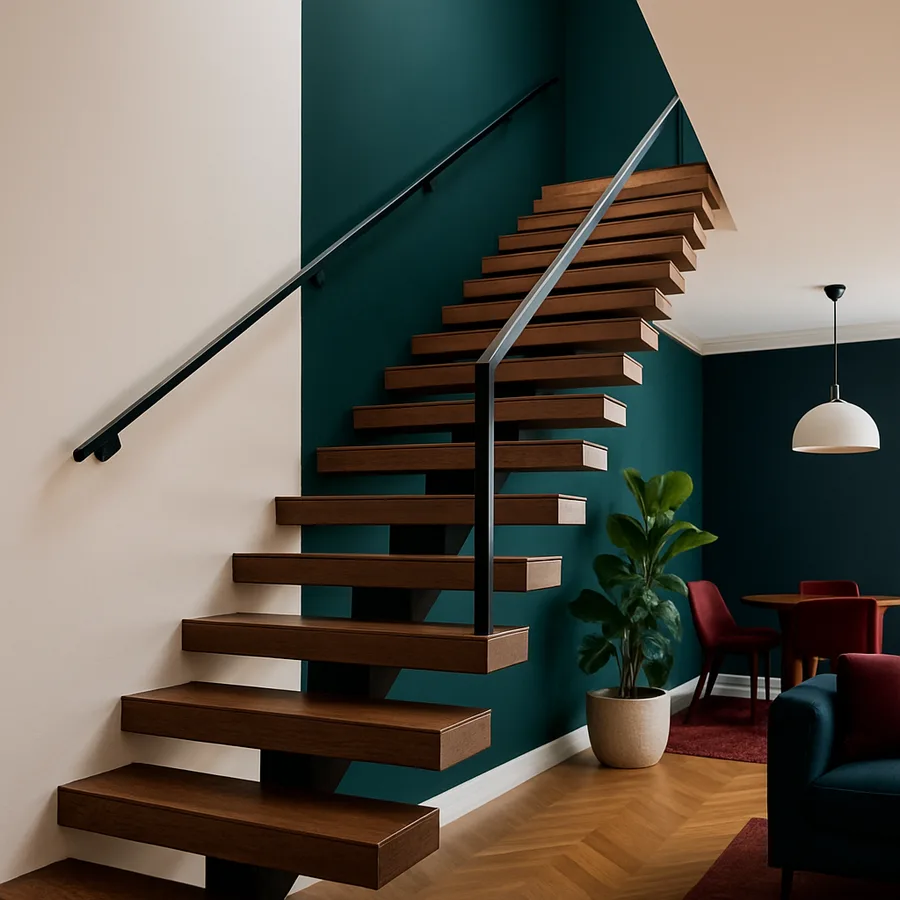

A floating stair, where the treads appear to emerge from the wall with no visible stringer or support, is the most dramatic detail in modern residential design. It is also one of the most engineered. Every tread is a cantilever, and every cantilever transfers its load through a steel armature buried in the wall and anchored to the structure behind it. The American Institute of Steel Construction estimates that more than half of failed floating-stair installations trace back to an undersized or incorrectly anchored wall attachment, not to the tread or the steel arm itself.
What does it take to anchor a floating tread so it carries 300 pounds at the nose without sagging, twisting, or pulling loose? Can you retrofit a floating stair into an existing wood-frame wall, or does it require a poured concrete or steel-moment wall? What happens to the connection over a 20-year service life of seasonal humidity and live-load cycling? This guide walks the wall attachment in five ordered steps from structural plan to torque check.
Step 1: Identify the Structural Wall Type Before You Design the Tread
The wall behind a floating stair has to do real work. A floating tread loaded at the nose creates a bending moment that wants to rotate the steel armature downward at the tip and upward at the wall connection. That rotation transfers as a pulling force at the top anchors and a pushing force at the bottom anchors, which is why a single anchor bolt is never sufficient. The wall has to resist both pull-out and bearing, and the wall type determines which fastener system works.
Three wall types are common in U.S. residential construction. A reinforced concrete or solid-grouted concrete masonry unit (CMU) wall is the strongest and the easiest to engineer; cast-in-place anchors or epoxy-set threaded rod transfer the load directly to the concrete. A steel-stud wall with a continuous steel back plate behind the studs can work for moderate spans, but the back plate has to be sized and fastened by an engineer. A standard 2x4 or 2x6 wood-frame wall, by itself, will not carry a floating-tread load and must be modified with a steel moment frame, a glue-laminated post-and-beam armature, or a continuous LVL behind the gypsum.
The wall thickness also constrains the design. A four-inch concrete wall can accept a four-and-three-quarter-inch embedment depth on a half-inch anchor only by drilling completely through and using a through-bolt with a back plate on the far side. An eight-inch wall provides enough depth for a standard epoxy embedment without breaking through. Confirm the wall thickness with a measurement, not an assumption, before any anchor is sized.
If you are renovating around an existing stair, expose the wall structure with a small inspection opening before committing to a floating-tread design. What looks like a solid wall in a real estate photo is often a 2x4 partition with no structural capacity for cantilever loads. A 30-minute opening saves a 30-week structural redesign.
Step 2: Specify the Anchor Bolts and Pattern From a Structural Calculation
Once the wall type is set, the anchor pattern follows from a structural calculation rather than a guess. The 2021 International Residential Code (IRC) section R301.5 sets the residential stair live load at 40 pounds per square foot, but for floating-tread design the controlling load is the concentrated load: 300 pounds applied at the nosing, per the IRC. That load, multiplied by the cantilever distance from the wall face to the nosing, produces a moment that the anchor pattern must resist.
A typical 11-inch tread cantilevered 10 inches from the wall face under a 300-pound nose load generates a moment of about 3,000 inch-pounds. With a four-bolt pattern spaced six inches apart vertically, each top anchor sees a tension load of roughly 500 pounds and each bottom anchor sees a similar bearing load. Stainless steel or zinc-plated threaded rod of one-half-inch diameter, set in epoxy per the manufacturer's data sheet, will carry that load with a safety factor of five or more in concrete. The American Concrete Institute (ACI) publishes the anchor design standard ACI 318-19 Chapter 17, which is the document an engineer will reference when sizing the bolt pattern.
Live-load cycling matters too. A residential stair sees roughly 5,000 to 20,000 load cycles per year per tread. Over a 30-year service life, that is up to 600,000 cycles. Fatigue is not normally a design concern at residential load levels, but a connection that is borderline at static load will not survive cyclic loading. Build in headroom: a connection designed for twice the static load will still be in good shape at the 30-year mark.
Provide the engineer with the actual tread geometry, the expected finish material, and the homeowner's weight assumptions if anyone in the household weighs significantly above the 300-pound IRC concentrated load. An engineer who has the real numbers can size the connection efficiently rather than designing to a worst-case envelope that drives up cost.
Step 3: Locate and Verify the Wall Substrate Before Drilling
A perfect calculation will fail if the drill hits empty space behind the gypsum. Before any drilling, locate the wall substrate with a high-quality stud finder, a borescope through a small inspection hole, or, on an existing wall, a partial demolition of the gypsum to expose the structure. The Occupational Safety and Health Administration (OSHA) does not regulate this step in residential work, but the manufacturer of every reputable epoxy anchor system, including Hilti, Simpson Strong-Tie, and Powers, will void its load rating if the anchor is not set in the specified base material.
Mark the centerline of each tread on the wall and project the anchor pattern down to that line with a laser level. Drill a test hole at the top and bottom of the pattern with a one-quarter-inch bit and confirm you reach solid substrate at the depth the anchor requires. A typical half-inch threaded rod in epoxy needs a four-and-three-quarter-inch embedment depth in concrete, which means your test hole has to reach at least five inches of solid concrete before you commit to the full pattern.
Check for rebar before you drill. A rebar locator or a GPR (ground-penetrating radar) scan costs less than $200 to rent and can prevent cutting through a structural reinforcing bar, which weakens the wall and bonds the drill bit instantly. In a CMU wall, identify the solid-grouted cells (typically at corners and openings) and place the anchors there; an anchor in an ungrouted cell has almost no pullout capacity. The ACI publishes guidance on grouted-cell identification in its TMS 402 masonry code.
Coordinate the substrate verification with the electrical and plumbing trades. A floating stair often crosses paths with wiring chases or plumbing runs that were not on the original drawings; discovering a vertical riser inside the anchor field on installation day stops work for a week. A pre-install scan of the wall with a multi-function detector is cheap insurance.
Step 4: Install the Anchors With the Manufacturer's Specified Procedure
Epoxy anchor installation is recipe-sensitive. Skip a step and the published load rating no longer applies. The standard sequence is: drill the hole to the specified diameter and depth, brush the hole with a stiff nylon brush twice to remove cutting dust, blow the hole clean with oil-free compressed air twice, brush again, blow again, inject the epoxy from the bottom of the hole upward to avoid trapped air, insert the threaded rod with a slow twisting motion, and let the epoxy cure for the full time stated on the cartridge before applying any load.
Cure times vary with temperature. At 70 degrees Fahrenheit, most structural epoxies reach full load capacity in 24 hours; at 40 degrees Fahrenheit, the same epoxy may need 72 hours or more. The American Society for Testing and Materials (ASTM) standard E1512 covers the testing protocol for adhesive anchor systems, and the published load tables in any reputable manufacturer's evaluation report are derived from that testing. Do not load the stair, even with worker weight, until the cartridge cure time has elapsed.
Water in the hole is a silent failure mode. A drilled hole in concrete or masonry collects condensation overnight; the brush-and-blow sequence is meant to remove that moisture as well as cutting dust. If the substrate has been rained on or if humidity is above 75 percent, blow the hole an extra time and watch for moisture droplets on the brush. A hole that will not dry should be plugged with epoxy and re-drilled adjacent rather than used in a damp condition.
Keep the manufacturer's data sheet on the work surface during installation. Even experienced installers occasionally skip the second brush-blow cycle when working under deadline pressure. The data sheet, in plain sight, serves as a checklist and removes any ambiguity about whether the published load rating still applies.
Step 5: Torque, Inspect, and Document Each Tread Connection
After cure, each anchor is torqued to the manufacturer's specification, typically 25 to 35 foot-pounds for a half-inch rod in epoxy. Use a calibrated torque wrench, not a guess; over-torquing strips the epoxy bond, under-torquing leaves the connection loose. Mark each anchor with a paint dot once it is torqued so you have a visual record that nothing was skipped. Photograph the finished anchor pattern before the wall is closed up.
The final step is a load test. With the steel armature bolted to the anchors but before the wood tread is installed, hang a 600-pound weight (twice the design load) from the cantilever tip and confirm the deflection is within the engineer's stated limit, typically less than one-quarter inch. Hold the load for one hour and recheck. The American Institute of Steel Construction reports that this simple field load test catches roughly 95 percent of installation defects before the homeowner ever steps on the stair. Document the test with photos and the deflection reading and keep the record with the project file.
Plan for periodic re-inspection. The stair should be visually checked once a year for any sign of armature movement, wall cracking around the anchor points, or gypsum cracking adjacent to the tread. A small crack at the wall-tread joint is the earliest warning of an anchor working loose. Address any movement immediately by removing the tread, inspecting the anchor, and retorquing to specification.
Brief the homeowner on the inspection cadence at project closeout. Most homeowners have no idea their floating stair has a maintenance requirement and will not catch the first signs of loosening on their own. A written one-page maintenance brief, handed over with the closeout package, protects both the homeowner and the contractor in the years ahead.
Putting It All Together
Floating-tread wall attachment is a structural problem first and a finish problem second. Walk the five steps in order: identify the wall type and modify it if it is not strong enough, specify the anchor pattern from a load calculation, verify the substrate before drilling, install the epoxy anchors strictly per the manufacturer's procedure, and torque-test-document every connection before the wall closes up. Each step exists because a documented installation failure happens when it is skipped.
If your wall is wood-frame and you are not ready to modify the structure, a half-floating stair, where the wall side is supported by a slim steel plate and the open side is supported by a stringer or post, gives most of the visual effect at a fraction of the engineering cost. Whichever path you choose, get the structural drawing on paper this week and let the engineer set the anchor pattern before the millwork is ordered. Reference the anchor design code from ACI, the IRC load requirements from the ICC, and the steel connection guidance from AISC for the structural calculations.
